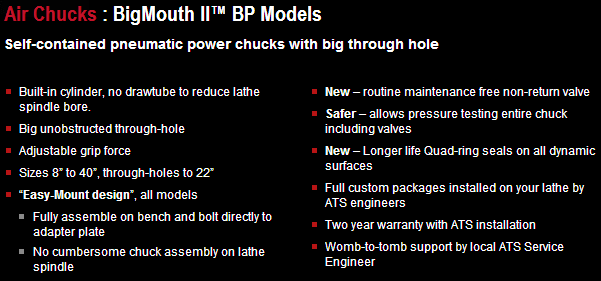

Air Chucks : BigMouth II™ BP Models

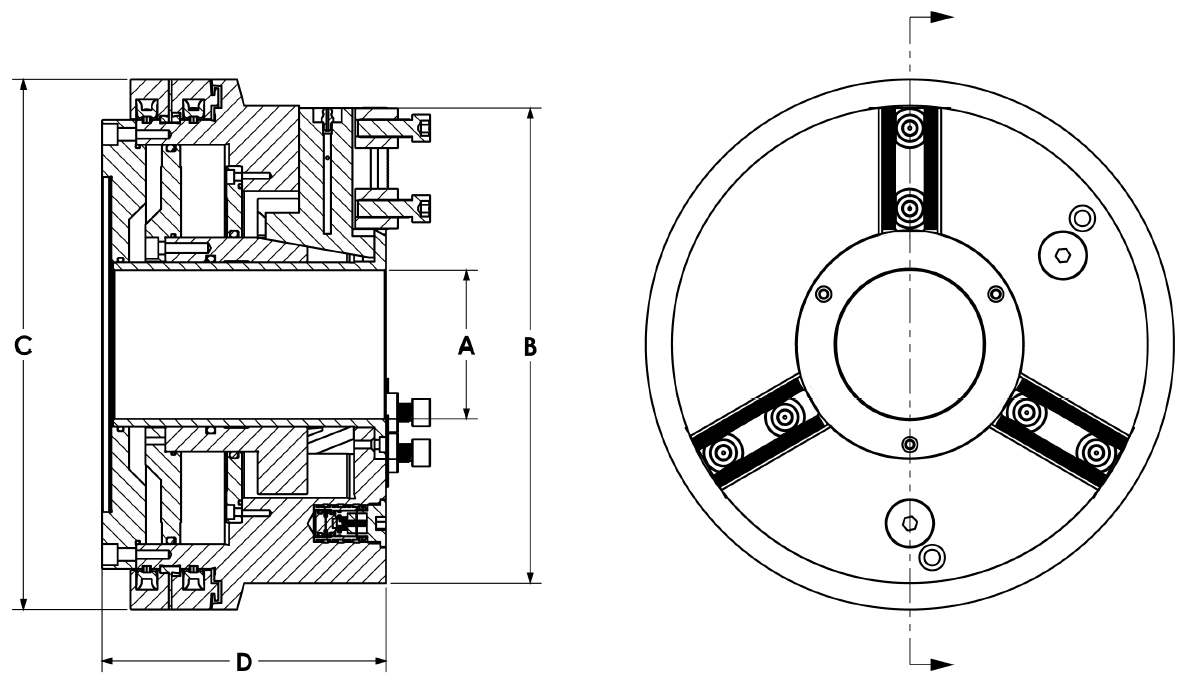

CHUCK MODEL   BP200-52 BP265-80 BP315-105 BP480-185 BP 500-230 BP 685-325 BP 800-375

Nominal Size

8"
10"
13"
19"
22"
27"
31"
Through-Hole
A
2.05
3.15
4.13
7.28
9.06
12.80
14.76
Face Diameter
B
8.1
11
13.2
18.9
22.4
27
31.5
Rear Diameter
C
11.8
14.6
14.6
20.9
22.4
27
33.5
Length
D
5.3.
5.8
6.2
8.8
8.8
10.3
12
Jaw Stroke/Jaw
Inch
0.165
0.197
0.197
0.315
0.315
0.394
0.472
Jaw Serration

1/16 X 90º
1/16 X 90º
1/16 X 90º
3/32 X 90º
3/32 X 90º
3/32 X 90º
3/32 X 90º
Maximum Speed
RPM
2800
2200
2200
1500
1300
800
750
Max Operating Pressure
PSI
120
120
120
120
120
120
120
Grip Force @ 90 PSI
Lbs Total
13950
21400
19300
41860
44187
61600
61600
Weight
Lbs
75
120
170
395
440
936
1545
